2MP OV2311 Global Shutter M12 for jetson

119,00 €

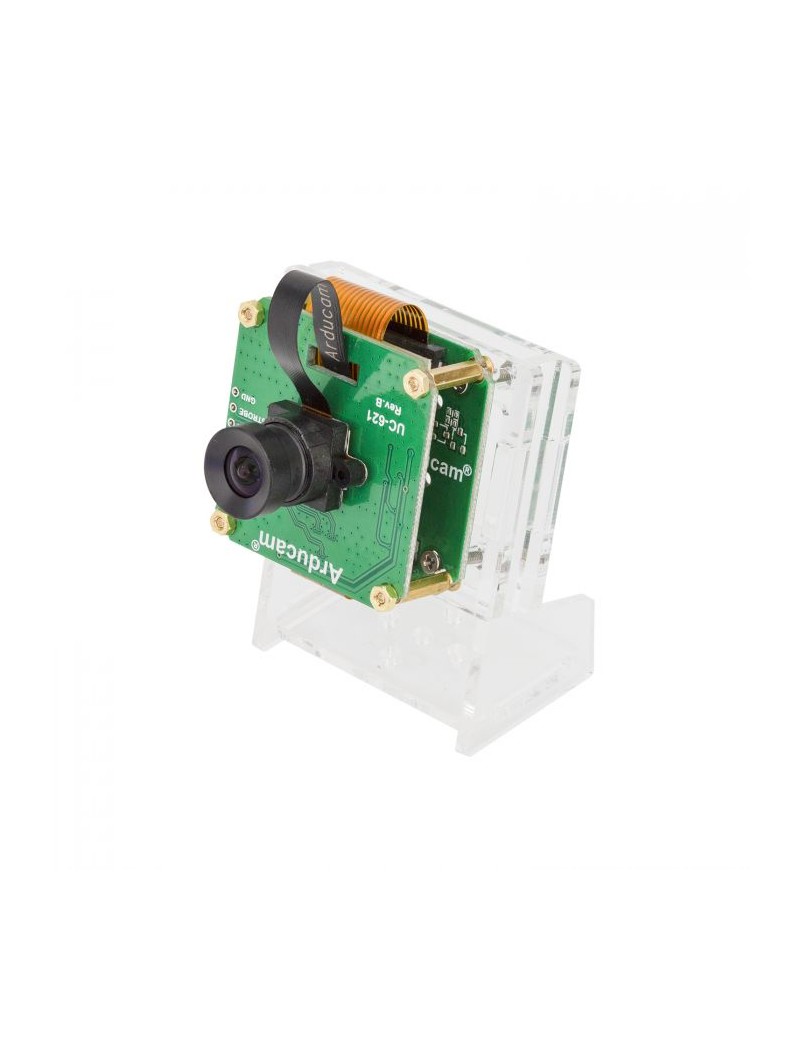

Arducam 2MP OV2311 Global Shutter M12 Mount NoIR Mono Camera Modules for Jetson Nano

Quantità
Ultimi articoli in magazzino

Item Description

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this 2MP OV2311 Global shutter camera module, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware.
Based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS™ technology, it provides full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.

Features

  • Shutter Type: Global Shutter
  • Color Type: Mono
  • Interface: MIPI
  • Format: RAW Bayer
  • Platform Support: Jetson Nano
  • Max S/N ratio: 37.4 dB
  • Dynamic range: 68 dB

Specification

  • Sensor type: OV2311
  • Pixel size: 3 µm x 3 µm
  • Resolution: 1600 x 1300, 1280 x 720, 640 x 480
  • Optical Size: 1/2.9"
  • Lens spec: Lens Thread: M12 x 0.5P, Field of View(FoV): 83°(H)
  • IR Sensitivity: without IR Filter, IR sensitive
  • Frame rate: 1600x1300@60 fps
  • Interface Type: 2-Lane MIPI
  • Output format: RAW8/RAW10
  • Minimum exposure time: 1 row period (11.3us at the resolution of 1600x1300 on Raspberry Pi/Jetson Nano.)

Driver Features

  • Support Gray, Y10, Y16
  • Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
  • Support External Trigger Global Shutter Camera
  • Support Single Line Driver Installation Command
  • Support OpenCV Friendly and Provides Source Code Demonstration
  • Support Dual Camera Synchronzation

Applications

  • DSC
  • Machine Vision
  • Robotics
  • Face Recognition

Documentation

Package Including

  • 1pcs Arducam 2MP OV2311 MIPI Camera Module
  • 1pcs Arducam Adapter Board for Jetson Nano
  • 1pcs 150mm 15pin 1.0mm FPC cable
  • 1pcs 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
  • Acrylic case for the camera module

Software Links

Arducam Jetson Nano Camera Modules

AC-B0221
