Item Description:

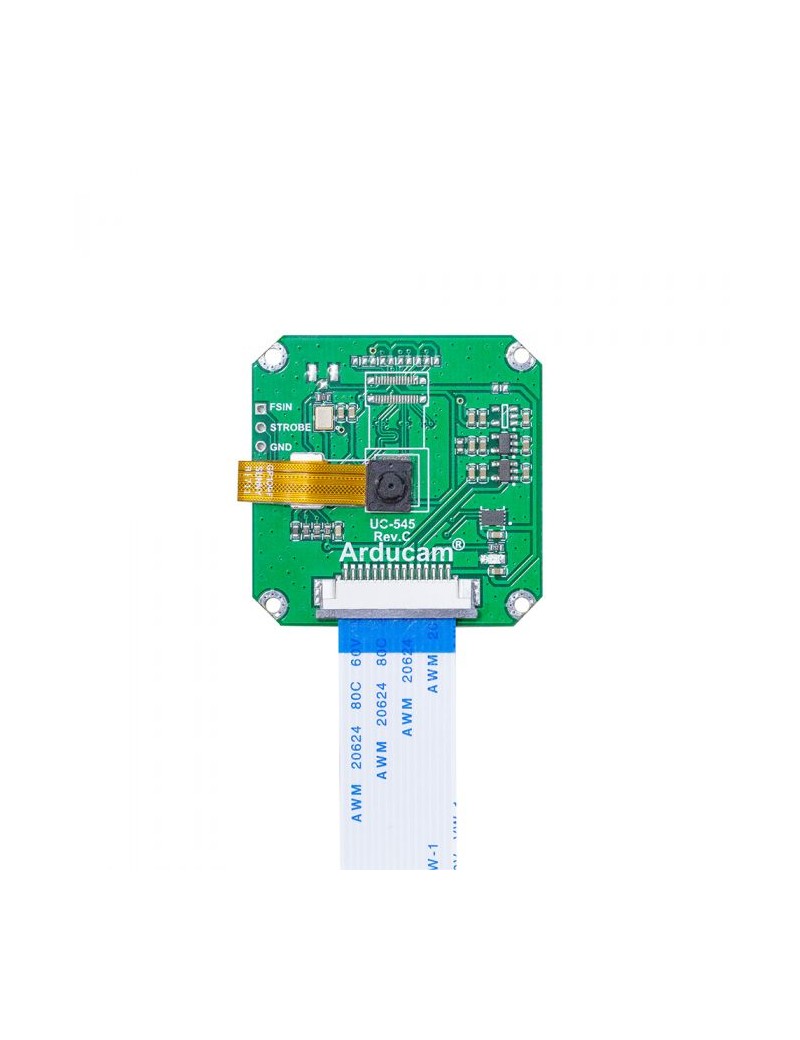

The Arducam monochrome (B&W) global shutter VGA resolution OV7251 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on a 1/7.5-inch Omnivision OV7251 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 100fps in VGA resolution with complete user control over image quality.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

Note:

This camera and RPI driver doesn’t support ISP functions like AEC/AGC etc., and does not support hardware JPEG/H.264 encoding.

Key Specifications:

• Sensor: Monochrome global shutter OV7251
• Pixel Size: 3 μm x 3 μm
• Active array size: 640*480
• Optical Size: 1/7.5 inch
• EFL: 1.3
• F.NO: 2.2
• IR Sensitivity: sensitive to IR, without IR filter (Check visible light version with SKU: B0161)
• FOV: D86.5 Deg./H72.9 Deg./V57.7 Deg.
• Focusing Range: 65mm ~ infinite
• Output interface: 1-lane MIPI serial output
• Output formats: 8/10-bit BW RAW
• Maximum image transfer rate: 120fps@640 x 480, 180fps@320 x 240, 360fps@160 x 120
• Board Size: 40mm x 40mm

Application:

• Cellular phones
• Toys
• Tablets
• Machine vision
• ARM/FPGA/DSP based platforms

Package Including:

• 1 pcs Arducam OV7251 MIPI 0.3MP Monochrome Global Shutter Camera Module NoIR
• 1 pcs 150mm 15pin 1.0mm FPC cable
• 1 pcs 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

Additional Resources:

• User Guide – Arducam OV7251 0.3MP Global Shutter Camera Module
• Arducam Documentation – Arducam OV7251 0.3MP Global Shutter Camera Module
• Video – Arducam Global Shutter MIPI Camera Module for Raspberry Pi
• Blog – Arducam MIPI Camera Module for Raspberry Pi
