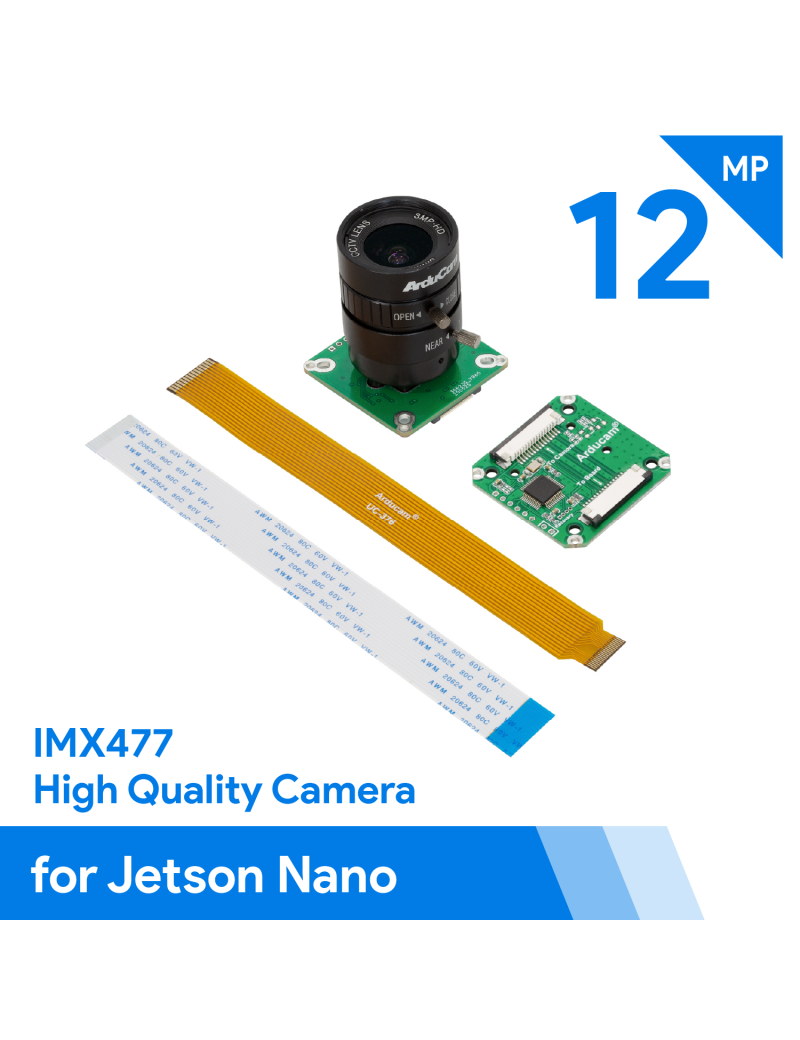

HQ Camera for Jetson Nano, 12.3MP IMX477

109,79 €
Tasse incluse
Quantità
Ultimi articoli in magazzino

DETAILS

Item Description:

The official Pi HQ camera is only available in one model. It doesn't include a lens, and only comes with limited recommendations. To solve the application on Jetson Nano, Arducam released this camera bundle, a customized IMX477 camera board with three hole pitches, a 6mm CS lens and a Jetson Nano adapter board. And you can download our 3D files to print your case as you like, or search the complete bundle B0243, which also includes a metal enclosure, a tripod and a HDMI extension adapter. This camera module supports Jetson Nano as well as all Raspberry Pi models and PC/laptop (need MIPI adapter board and USB camera shield, not included).

Features:

  • Work Natively with Jetson Nano: Jetvariety adapter board is included, hassle-free to work with Jetson Nano A02 and B01. NOTE: only RAW image supported, no ISP supported.
  • Get Clearer Images: This camera adopts 1/2.3" 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V).
  • Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3" 6mm focal length CS lens is included, and the 3D file of the camera can be downloaded to print your case. Also, you can search for B0243 to get the camera bundle with the metal enclosure.
  • More Lanes: The Arducam high quality camera module has a 4-lane MIPI CSI-2 interface, more than the official one, makes it possible to get more data through.
  • Support More Platforms: It supports all Jetson Nano A02&B01 models. For Raspberry Pi models (Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more), you need to remove the Jetvariety adapter board and connect the camera cable to Raspberry Pi (camera cable included). For PC/laptop, you need a camera shield and a MIPI adapter board, please search for USB2 camera shield B0175 or USB3 camera shield B0111, and MIPI adapter board B0123.

Ordering in bulk? Or having questions about this camera? Talk to us!

Specifications

  • Camera

- Sensor: IMX477

- Optical Format: 1/2.3" (diagonal 7.857mm)

- Resolution: 4056(H) x 3040(V) 12.3MP

- Pixel Size: 1.55um x 1.55um

- IR Sensitivity: Visible light

- Interface: 4-lane MIPI CSI-2

- Default Lens Mount: CS-Mount

- Frame Rate: (depends on the target platform, maximum fps limit might apply)

  Full resolution@60fps(normal), 4K2K@60fps, 1080p@240fps

  Full resolution@40fps (12bit normal)

  Full resolution@30fps (DOL-HDR, 2 frames)

  • Lens

- Format: 1/2.3 inch

- Focal Length: 6mm

- Aperture (F): F1.4

- Field of View (FOV): 65° (H)

- Mount: CS-Mount

- Back Focal Length: 12.5mm

- MOD: 0.1m Dimension: Φ28×26.58mm

- Weight: 29g

  • Camera board

- Board Size: 38mm×38mm

- Hole Pitch: Compatible with 29mm, 30mm, 34mm

Package Includes:

  • 1 pcs 12.3MP IMX477 color camera module

  • 1 pcs 6mm focal length CS-mount camera lens

  • 1 pcs Jetvariety adapter board

  • 1 pcs 150mm/6inch 15pin camera cable

  • 1 pcs 300mm/12inch 15pin to 22pin camera cable

  • 1 pcs 80mm/3.15inch 22pin camera cable for Raspberry Pi Zero&W
AC-B0249
