Item Description:

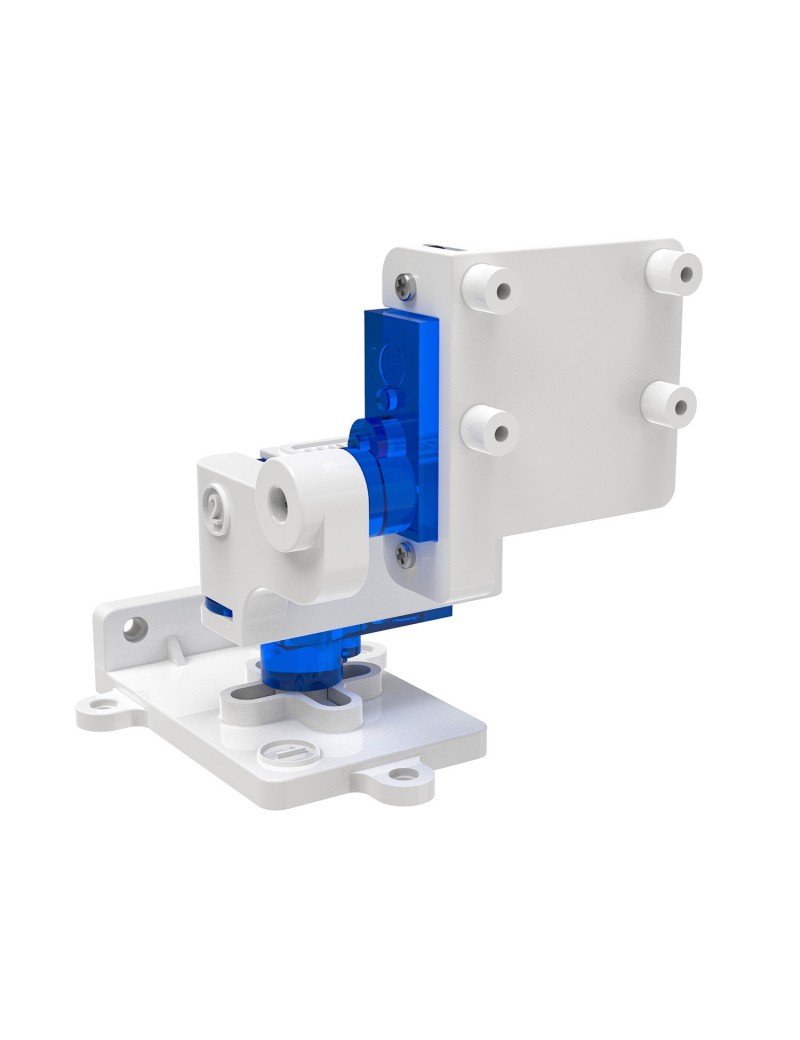

Arducam B0227 is a new arrival, which can move your camera in two dimensions with 180 degrees horizontal and 145 degrees vertical movements. The PTZ camera controller board outputs the PWM signals to drive the servo motors directly. Therefore, B0227 can be used to control your camera to monitor places that should be covered by multiple ones commonly in the surveillance system.

Applications:

• IoT cameras
• Robot cameras
• Wildlife cameras
• Other security and surveillance projects

Specifications

- Digital Servo

• Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
• Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
• Operating Voltage: 3.6v～4.8v
• Operating Current: ＜350mA
• Dead Band: 3 usec
• Dimension: 20mm x 8.75mm x 22mm

- PTZ Control Board

• PWM Driver: PCA9685
• PWM resolution: 12-bit
• Ambient light sensor: TSL2581FN
• Ambient light resolution: 16-bit
• Communication interface: I2C
• Operating voltage: 3.3V/5V
• Dimension: 25mm x 61mm

Packing List

• 2 x Digital servos
• 1 set epoxy bracket pieces with screws
• 1 x PWM control board
• 4 x Female to female jumper wires (The wire has no fixed color)
• 2 x Male to female jumper wires (The wire has no fixed color)
