Item Description:

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.

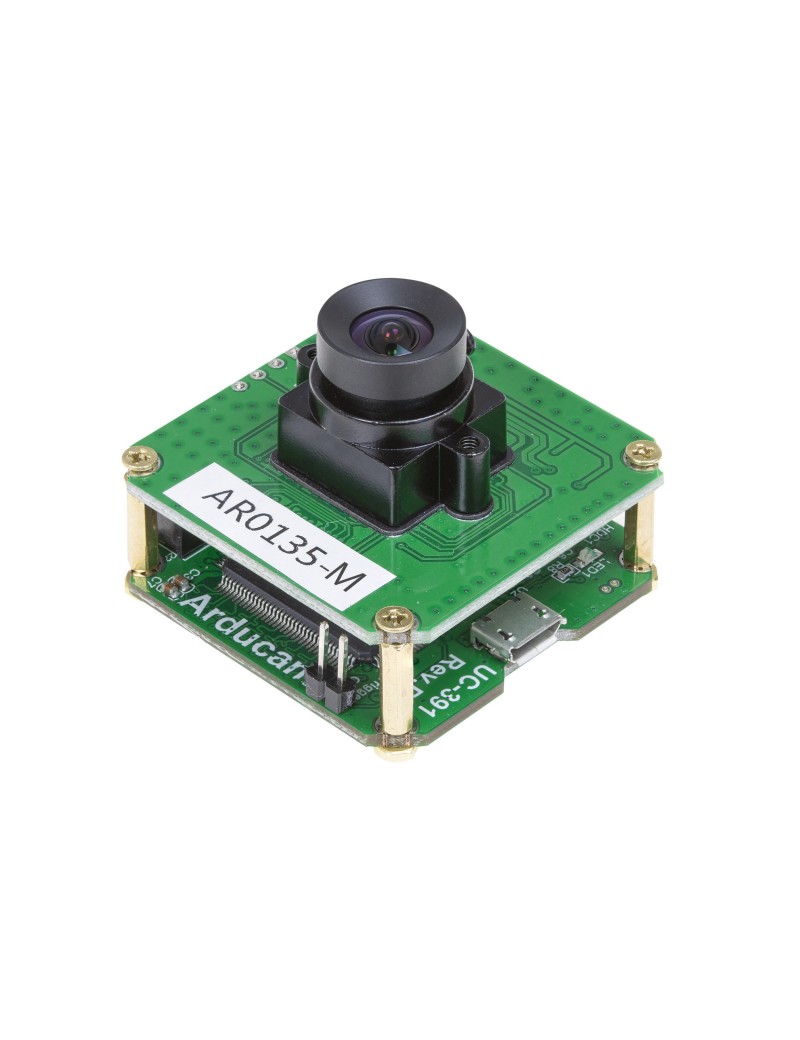

The AR0135 module is a 1/3 inch 1.2MP global shutter Monochrome camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.

Feature:

• 1/3" optical format
• 1.2MP 1280 x 960 AR0135 global shutter sensor
• 3.75 x 3.75 u Pixel size
• 54fps at full resolution
• 5.3V/lux-sec responsivity
• 64dB dynamic range
• single 3.3V power input
• Parallel camera interface
• M12 mount lens

Application:

• Security
• High dynamic range imaging
• Unattended surveillance
• Stereo vision
• Machine vision
• Automation

Packing List:

• 1 pcs Arducam CMOS AR0135 1/3-Inch 1.2MP Monochrome Camera Module
• 1 pcs Arducam USB2 Camera Shield
• 1 pcs USB2 Cable

Arducam Link:

AR0135 Monochrome Camera Module
