Introduction

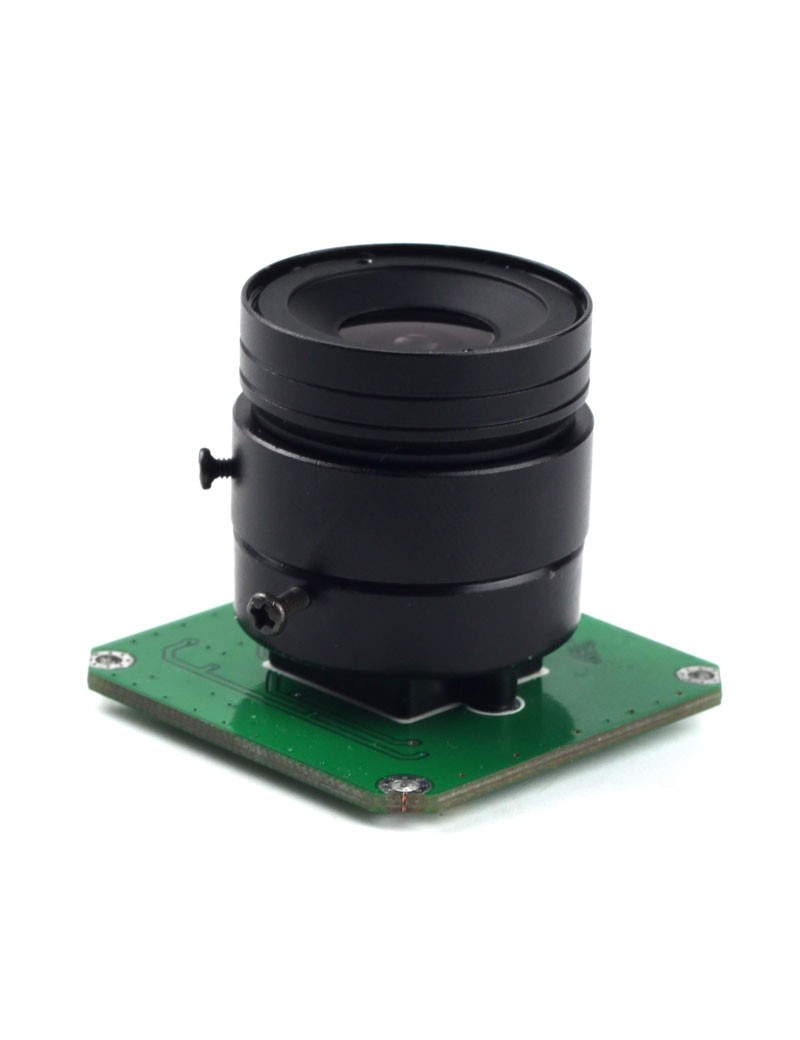

14MP camera header board now is available from ArduCAM, it is color camera based on a ON-Semi (former Aptina) 1/2.3″ MT9F001/002 RAW RGB sensor. This camera header board provides low noise images for outstanding value in a broad range of industrial applications. It features a 15 megapixel (4608 x 3288) resolution imager capable of 6.3 fps at full resolution, 30fps@1080p and 60fps@VGA resolution.These cameras header board offers the user choice of 8-bit or 12-bit digitization parallel interface and a dynamic range of 60.5dB. It can work with USB Camera Shieldseamlessly for fast evaluation, which provides SDK, API and examples for both Windows and Linux.

Typical Applications

• Microscopy
• Metrology
• High-resolution imaging
• Document scanning
• Flat panel, PCB inspection
• Aerial photography

Customization

This product is one of our many standard offerings. ArduCAM also provides an extensive list of customized cameras to OEM customers around the world. We may already have what you need. If not, we can certainly design and build it for you.

Resources

Datasheet MT9F001/002, MT9F001/002 Camera Breakout Board
Application Note MT9F002 Application Note, Sensor Register File
Sample Images RAW Format JPEG Format

Example Code

Windows GUI : excutable, Visual Studio source code
Linux:  Python code
Raspberry Pi : Python code
