Item Description:

Introduction

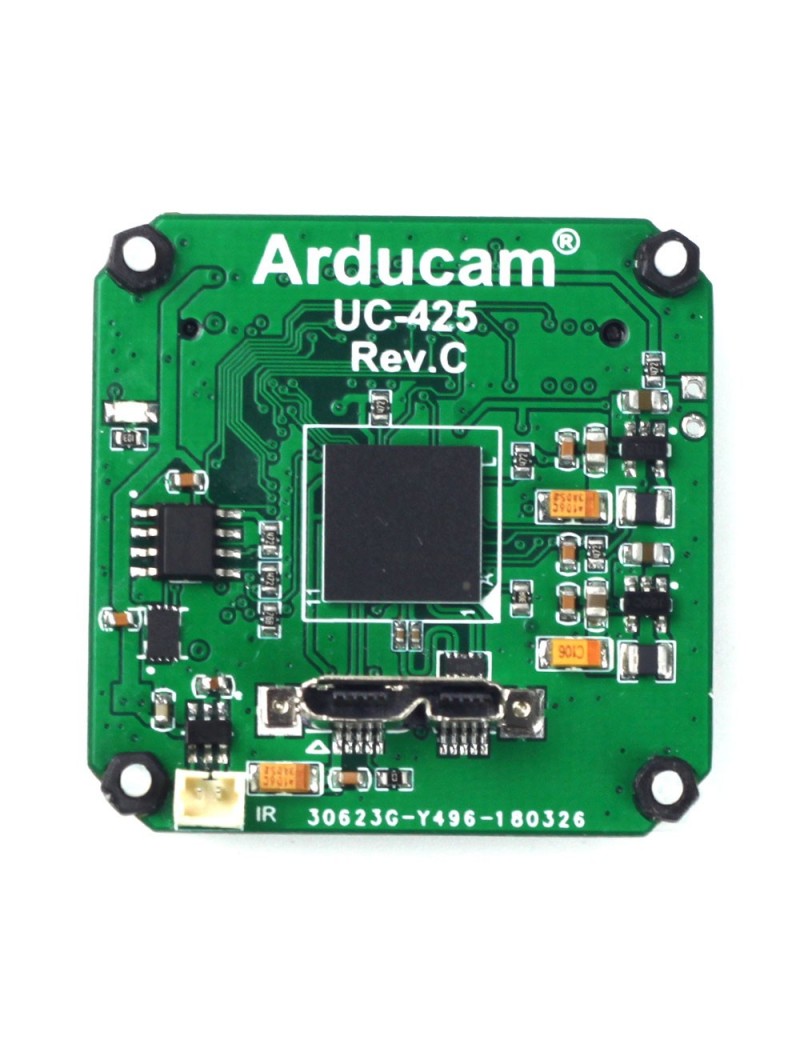

Arducam USB3 camera shield is the latest USB3.0 camera shields, it offers the improved performance and enhanced functions than the previous USB2.0 camera shield. It not only supports high resolution and high frame rate image sensors, but also supports stereoscopy camera and IRCUT control feature. With the given camera configuration files, user can switch between different cameras without any effort. It is the ideal solution for camera evaluation/testing, robot/drone, IoT, machine vision and scientific applications.

Features

• Support any parallel image sensors (need proper register settings)
• Support 8/10/12/14/16 bit pixel color depth
• Support Stereoscopy mode for dual camera system
• Build-in IRCUT control  (optional)
• Need extra MIPI to parallel adapter board for supporting MIPI interface sensors (see Table1)
• Provide free binary SDK library and demo software source code
• Fully customizable and can be ported to any hardware platform and software OS (Current SDK Version Supports Windows Only)

Specifications

• Bandwidth: 5-Gbps USB3.0 PHY
• Camera Databus: 16bit@100MHz
• I/O Voltage Standard: 3.3V
• Connector: Micro-USB3.0
• Size: 40 x 40 mm
• Weight: 10g
• Power Consumption: 5V/300mA
• Operation Temperature: -10℃～+55℃

Table 1 Featured Camera Modules Supported

Documents

Arducam USB3 Camera Shield DataSheet
Arducam USB3 Camera Shield User Guide
Arducam USB Camera Shield SDK User Guide

Package Includes

• 1pcs Arducam  USB3 Camera Shield
• 1pcs USB3.0 Cable

Note : Camera module/breakout is not included, should order seperately
