Item Description:

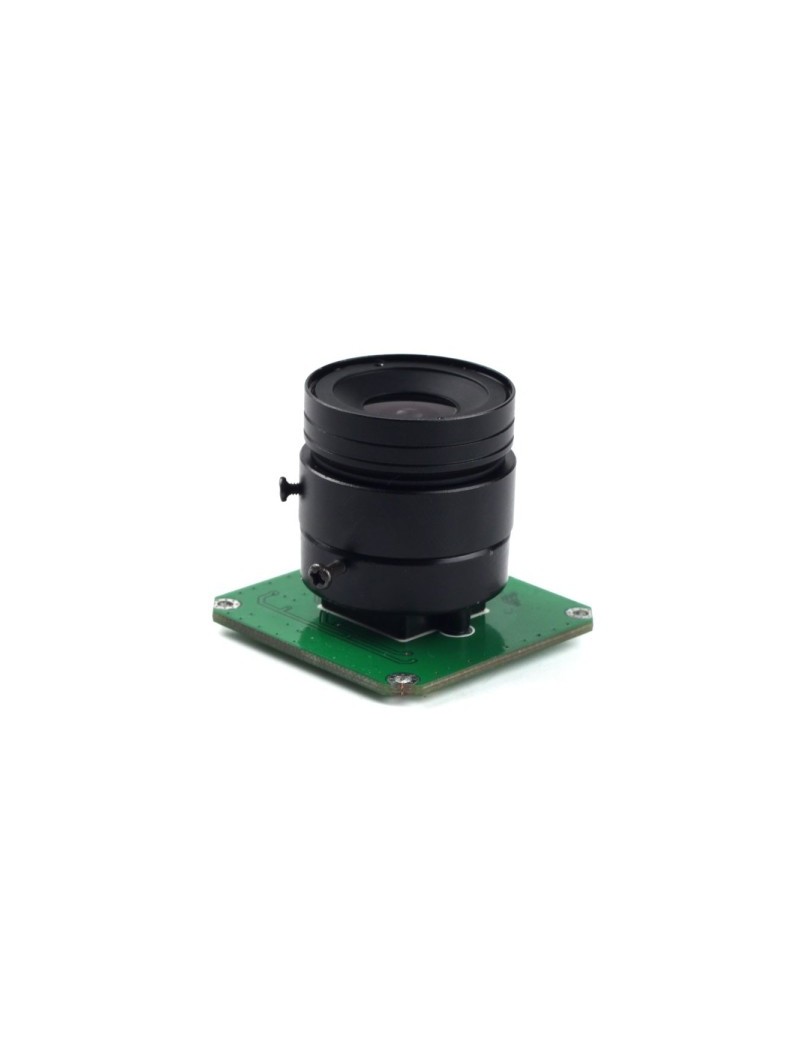

The MT9J001 camera module features Aptina’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. It incorporates the monochrome version of the MT9J001 sensor on board.

This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.

Please check the following link: http://www.uctronics.com/arducam-usb-camera-shield.html

1/2.3" 10MP (3856 x 2764) CMOS monochrome rolling shutter with global reset release camera module MT9J001 .
World-Class 1.67?m Pixel Sensitivity, Produced on Aptina’s world-class 1.67?m pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs.
Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.
Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.

Feature

• 1/2.3" optical format
• Monochrome Bayer pattern
• 10MP 3856 x 2764 MT9J001 sensor
• 1.67 x 1.67 um Pixel size
• 7.5fps at full resolution
• 0.31V/lux-sec responsivity
• 65.2dB dynamic range
• single 3.3V power input
• Parallel camera interface
• Default CS mount 4.2mm LS-18023 lens

Application

• Digital video cameras
• Digital still cameras
• Industrial camera
• Medical camera
• Microscopy camera

Package Including

1pcs Arducam CMOS MT9J001 1/2.3-Inch 10MP Monochrome Camera Module

Download

MT9J001 Camera Breakout Datasheet

MT9J001 Camera Breakout Application Note

Arducam USB Camera Shield User Guide

Mating connector part number:FH28D-30S-0.5SH(05)
