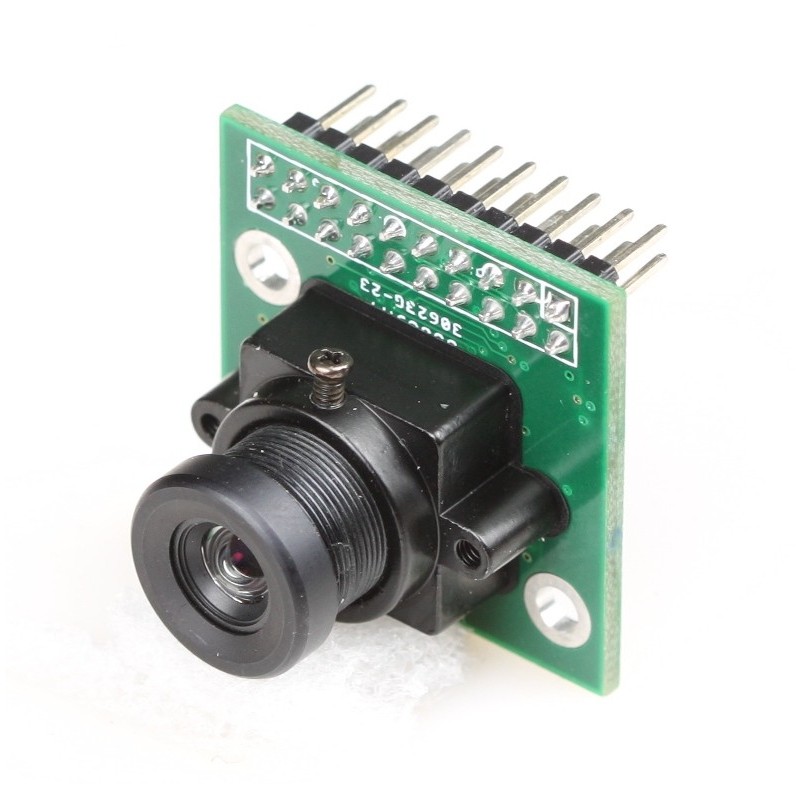

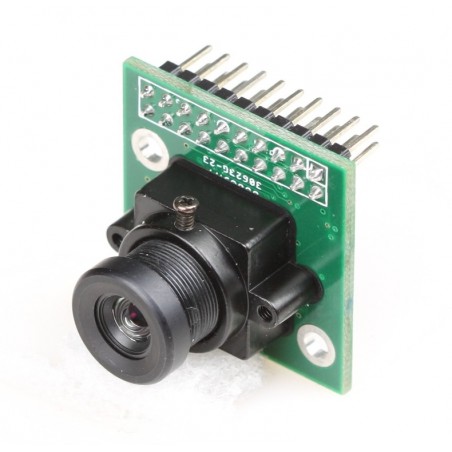

OV5642 Datasheet

Key specifications

• active array size: 2592 x 1944
• power supply:
  core: 1.5VDC + 5% (internal regulator)
  analog: 2.6 ~ 3.0V
  I/O: 1.7 ~ 3.0V
• output formats :
  (8-bit): YUV(422/420) / YCbCr422,
  RGB565/555/444, CCIR656,
  8-bit compression data,
  8/10-bit raw RGB data
• lens size: 1/4?
• input clock frequency: 6 ~ 27 MHz
• shutter: rolling shutter
• maximum image transfer rate:
  5 megapixel (2592×1944): 15 fps (and any size scaling down from 5 megapixel)
  1080p (1920×1080): 30 fps
  720p (1280×720): 60 fps
  VGA (640×480): 60 fps
  QVGA (320×240): 120 fps
• scan mode: progressive
• pixel size: 1.4 µm x 1.4 µm
• image area: 3673.6 µm x 2738.4 µm

Sample picture captured by OV5642 2592×1944 QSXGA full resolution

This image is captured at night in the room light with the full resolution (2592×1944).

Sample picture captured by OV5642 with 1080P(1920×1080) video mode

This image is captured in the room light with the 1080P video output (1920×1080).
