Note: The Camera Evaluation Kit needs a configuration file (sent via shipping notice) and isn't plug-and-play.

Item Description:

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The Arducam monochrome (B&W) global shutter VGA resolution OV7251 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on a 1/7.5-inch Omnivision OV7251 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 100fps in VGA resolution with complete user control over image quality.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

Features:

• Sensor: Monochrome global shutter OV7251
• Pixel Size: 3 μm x 3 μm
• Active array size: 640*480
• Optical Size: 1/7.5 inch
• EFL: 1.3mm
• F.NO: 2.2
• IR Sensitivity: sensitive to IR, without IR filter (Check visible light version with SKU: EK022)
• FOV: D86.5 Deg./H72.9 Deg./V57.7 Deg.
• Focusing Range: 65mm ~ infinite
• Output interface:USB 3.0
• Output formats: 8/10-bit BW RAW
• Maximum image transfer rate: 640*480@210fps
• Board Size: 40mm x 40mm

Application:

• Cellular phones
• Toys
• Tablets
• Machine vision
• ARM/FPGA/DSP based platforms

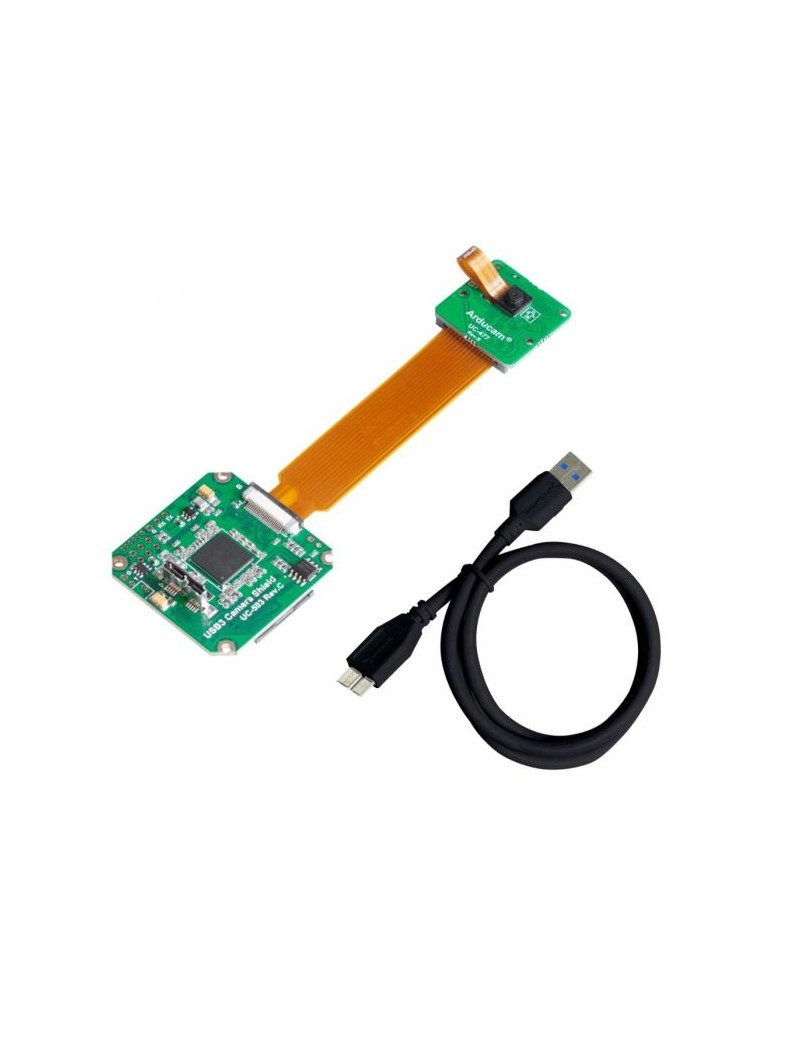

Package Including:

• 1 pcs Arducam OV7251 1/7.5-inch Monochrome Camera Module
• 1 pcs Arducam USB3.0 Camera Shield
• 1 pcs USB Cable

Additional Resources:

• Arducam Documentation– Arducam USB Cameras
• Github– Arducam USB Camera Shield
