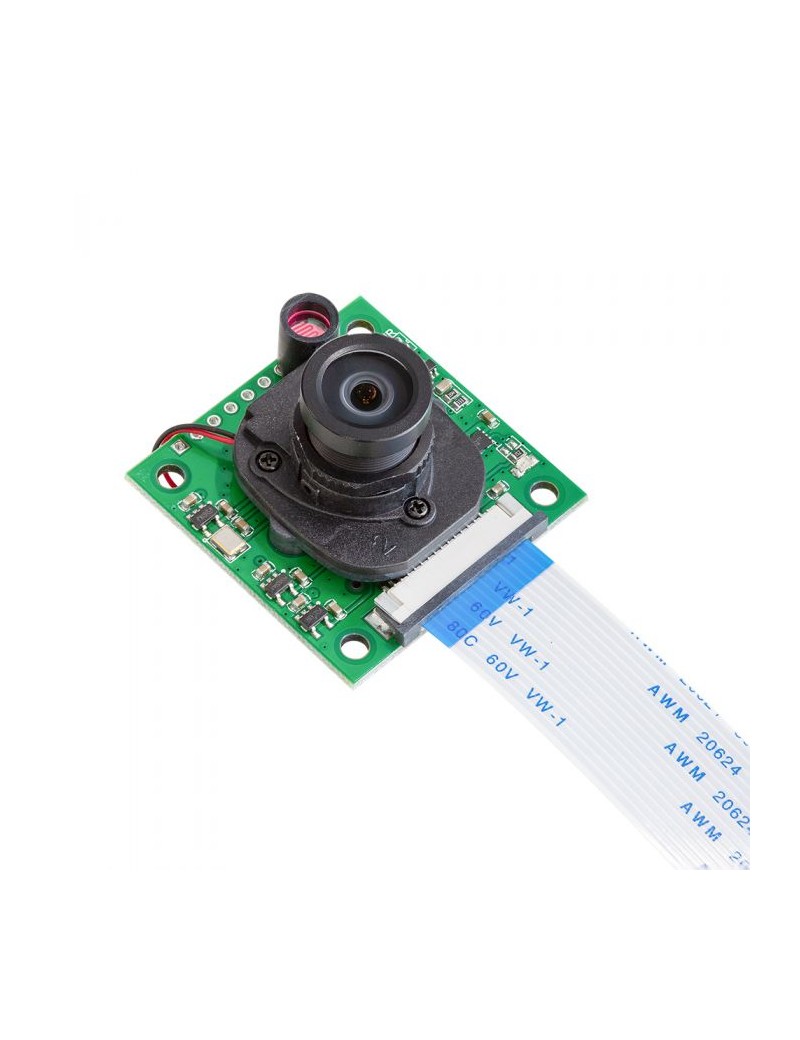

8MP Sony IMX219 camera module with Motorized IR cut filter

85,40 €
Tasse incluse
Quantità
Ultimi articoli in magazzino
Add to Compare
Add to Wishlist

Overview

ArduCAM team just released a 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It’s capable of 3280 x 2464 pixel static images. It attaches to Pi by the dedicated standard CSi interface.

It is supplementary for Raspberry Pi official camera in order to fulfill the demands for different lens mounts, field of view (FOV) and depth of the field (DOF) as well as the motorized IR cut filter for both daylight and night vision.

You can check LK001 for various M12 lenses.

Applications

  • Cellular phones, PDAs, Toys
  • Other battery-powered products
  • Recording slow motion
  • Wildlife photograph
  • Home Security Supervise
  • Machine vision, etc.

Specifications

Camera

Image Sensor IMX219
Still Resolution 8 Megapixels
Video Modes 1080p47, 1640 × 1232p41 and 640 × 480p206
Sensor Resolution 3280 × 2464 pixels
Sensor image area 3.68 x 2.76 mm (4.6 mm diagonal)
Pixel Size 1.12 µm x 1.12 µm
Optical Size 1/4"
IR Sensitivity Switch the IR cut filter on/off automatically
Supported Platform Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

Lens

FOCUS TYPEMANUAL FOCUS
Focal Length 1.8mm
F.NO F2.4
Field of View(FOV) 100°(H)
Lens Mount M12 Mount



Electrical & Mechanical

Camera Board size 36 x 36 mm
Peaking Current 300mA



Package Including

  • 1 x 8 Megapixels IMX219 Sensor Camera Module with Motorized IR-cut lens
  • 1 x 15cm 15pin FPC cable
  • 1 x 15cm 15-22pin FPC cable

Note

  • The package does not include any Raspberry Pi motherboard.
  • The drop-in replacement module does not include FPC cables and any camera boards. And it requires the use of the Raspberry Pi V2 camera board to function properly.
  • The lenses of all camera modules are not interchangeable. Please contact sales in advance if you need to replace them.
NOTE ON SUPPORTED RASPBERRY PI BOARDS AND OS
Platform Bookworm(rpicam) Bullseye(libcamera) Buster(raspistill)
Raspberry Pi 5 √
Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W √ √
Raspberry Pi CM3 / CM3+ / CM4
(extra carrier board required)		 √ √ √

Documentations

More information

Lens Spec

AC-B0154
