8MP IMX179 USB Camera Module
Write your review
73,20 €
Tasse incluse

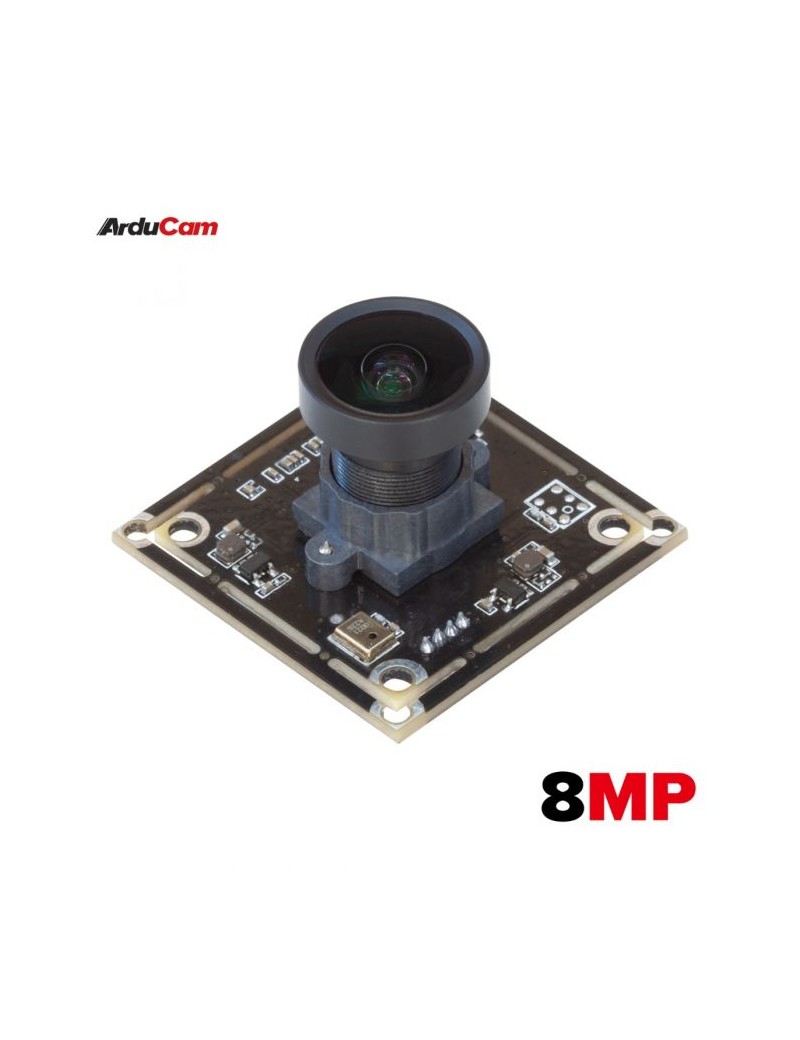

8MP IMX179 USB Camera Module with Wide Angle 115°(H) M12 Lens for Windows, Linux, Android, and Mac OS
Overview
This camera is based on 8MP IMX179 image sensor. The output format is MJPG/YUY2. The max resolution&frame rate is MJPG 30fps@3264×2448, YUY2 1fps@3264×2448. Besides, we have equipped the camera with Manual Focus M12 Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 115°(H) M12 Lens, allowing you to use it for more specific applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
Features
- More than HD: This camera adopts 8MP IMX179 sensor for sharp image and accurate color reproduction. Max resolution: 3264*2448 ; Compression format: MJPG / YUY2; Frame rates at max resolution: MJPG 30fps@3264×2448, YUY2 1fps@3264×2448
- Wide Angle: Assembled with a 115-degree horizontal view angle M12 lens with IR-cut filter, which provides a much wider Field of View compared to other lenses.
- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Wide Compatibility: USB webcam widely works with WinXP/Vista/Windows 7/8, and Windows 10 Linux with UVC. Webcam for MAC, PC, desktop computer, laptop USB.
- Applications: this tiny 38mmx38mm camera board can be installed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision application.
Specifications
| SENSOR | IMX179 |
|---|---|
| Resolution | 8MP |
| Color Filter Type | Color |
| Shutter Type | Rolling shutter |
| Optical Size | 1/3.2" |
| Output Format | YUYV/MJPG |
| Pixel Size | 1.4um x 1.4um |
| Sensor Active Area | 3264(H)x2448(V) |
| Frame Rate | MJPG： 30fps@3264×2448/2592×1944/1920×1080/1600×1200/1280×720/640×480 YUY2： 1fps@3264×2448 2fps@2592×1944 5fps@1920×1080/1600×1200 10fps@1280×720 30fps@640×480 |
| Focus Type | Manual Focus |
| FOV | 115°(H) |
| Lens Mount | M12xP0.5 |
| F.NO | 2.0±5% |
| E.F.L | 3.543 |
| Focal Length | 2.1 |
| TV Distortion | <20% |
| Interface | USB 2.0 device |
| Connector | S4B-ZR |
| UVC Complaint | No additional drivers required |
| Operating Voltage | DC 5V +/- 5% |
| Working Current | Max 300mA |
| Operating Temp. | -4°F-158°F(-20°C to 70°C) |
| Camera Board Size | 38mm x 38mm |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android, and Mac OS |
| Sample Application | AMCap-Windows Camera application for Video and Still Capture |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain |
Package Including
- 1 x Arducam 8MP Wide Angle USB Camera Module
- 1 x USB Cable (1m)
- 1 x Quick start guide
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
Documentation
AC-B0446
