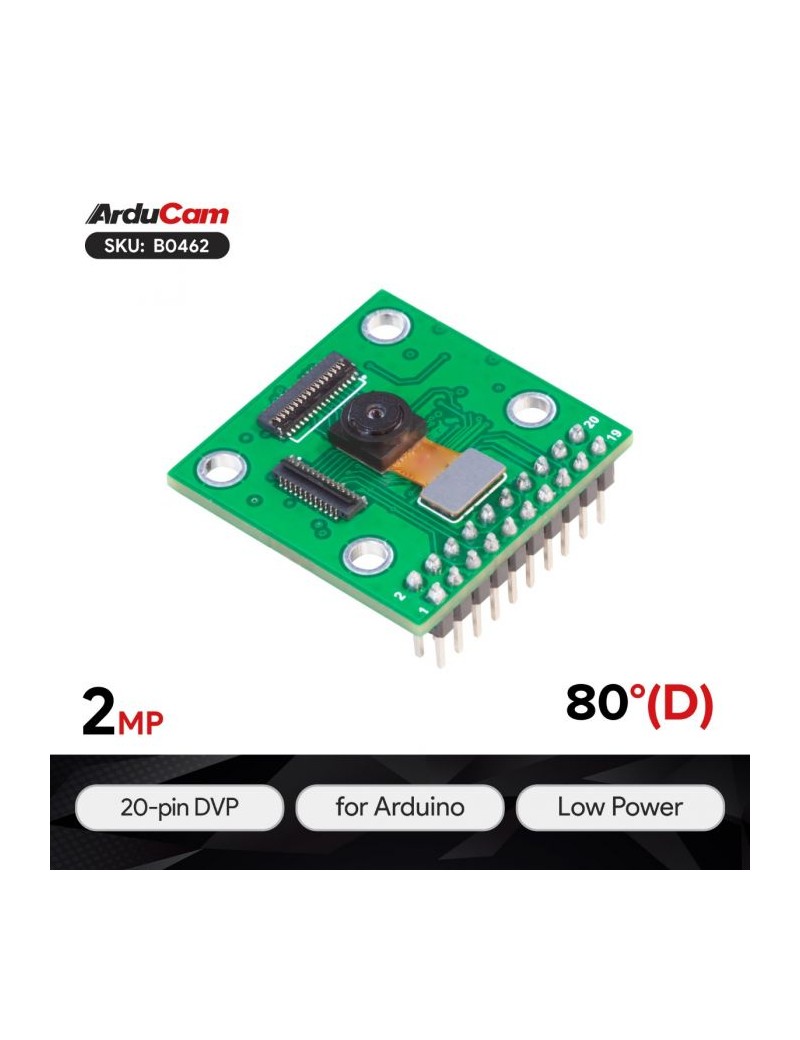

This camera is based on GC2415 Color rolling shutter image sensor. The GC2145 incorporates a 1616V x 1232H active pixel array, on-chip 10-bit ADC, and image signal processor.
The 2MP GC2145 camera module is equipped with a 80°(DFOV) stock Lens. It supports RGB output format. The standrad operating temperature is between -20~70℃, with the stable Image temp. between 0~50℃.
It is fully compatible with Arduino GIGA R1 board, a professional-grade microcontroller development board recently launched by Arduino. Seamlessly integrates with our camera module, unlocking versatile image capture and processing capabilities. Harness the power of Arduino GIGA R1 and gain a competitive edge in your projects.

Applications

• Machine/Computer Vision
• Robotics
• IoT
• Digital Fabrication
• Real-time Processing

Features

• Cost-Effective: Affordable solution for implementing visual capabilities in cost-sensitive projects.
• Compact Size: Compact form factor enables integration into space-constrained applications.
• Simplify Embedded Vision for All: Easy to set up and operate. Making it possible to add machine vision to your GIGA R1 board without much effort at all.
• Higher Resolution: Captures images with high resolution and detail, allowing for precise visual analysis.
• Low Power Consumption: Efficient power usage, making it suitable for battery-powered and energy-efficient applications.

Specifications

Package Including

• 1 x Arducam 2MP GC2145 Camera Module with 20-pin DVP Camera Board

Notes

• No platform board is included in the package

Documentation

• Quick Start Guide for Arducam Camera on Arduino GIGA R1
• Datasheet
